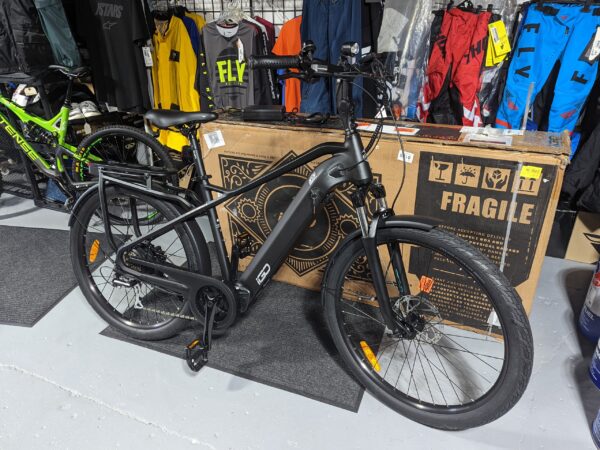

Igo Discovery Yorkville LE E bike
Igo Discovery Yorkville LE E bike
NEW E Bike MSRP $2599 SXS $1399
SPECIFICATIONS
FRAMESET
FRAME: Hydroformed Alloy, 27.5 Hybrid ERGOFIT frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack
COLOR: Black
FORK: SUNTOUR NEX-DS, 63mm travel, lockout with quick release
DRIVETRAIN
SHIFTERS: SHIMANO ALTUS 8-speed
CHAINRINGS: 42T with Narrow Wide teeth
CHAIN: KMC E8-S
REAR DERAILLEUR: SHIMANO ACERA 8-speed
CASSETTE: SHIMANO ACERA 8-speed 11-32T
COMPONENTS
HANDLEBAR:640mm, 16mm rise, 31.8mm dia.
GRIPS: VELO, Ergonomic, 135mm
STEM: Toolless adjustable threadless with 0 to 90 degree rise
SEAT POST: 31.6mm (350mm)
SADDLE: SELLE ROYAL Rio
BRAKE LEVERS: TEKTRO HDE350 with power cut off switch
BRAKE CALIPERS: TEKTRO HDE350 Hydraulic Disc
ROTORS: 180mm
WHEELS
TIRES: CHAOYANG 27.5”x2.4”
RIMS: 27.5”, Dual Wall Alloy, black
ELECTRIC TECHNOLOGY
DISPLAY UNIT: 2” TFT Display LCD display, Main power on/off, Front & Rear lights on/off, Backlit for night viewing, Battery Level indicator, PAS Level, Current, Average, Maximum speed, Walk Mode, Total distance odometer, Trip odometer, Trip Timer, Error code diagnostics
MOTOR: iGO DRIVE LE 500W (750W peak) geared rear hub motor, 48V
TORQUE: up to 55Nm
BATTERY: 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh)
RANGE: 110km (69mi) *
PEDAL ASSIST SYSTEM: 5 Levels of power assisted pedaling
THROTTLE: On-Demand, Removable
SENSOR: Electronic 32 pulse Cadence Sensor integrated into the bottom bracket
CLASS: Class2 / Class1 optional / Class3 capable where permitted **
OTHER
ACCESSORIES (INCLUDED): Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger
BIKE WEIGHT (without battery): 25.7kg (56.7 lbs)
WEIGHT CAPACITY: 125kg (275 lbs)
BATTERY WEIGHT: 3.5kg (7.7 lbs)
